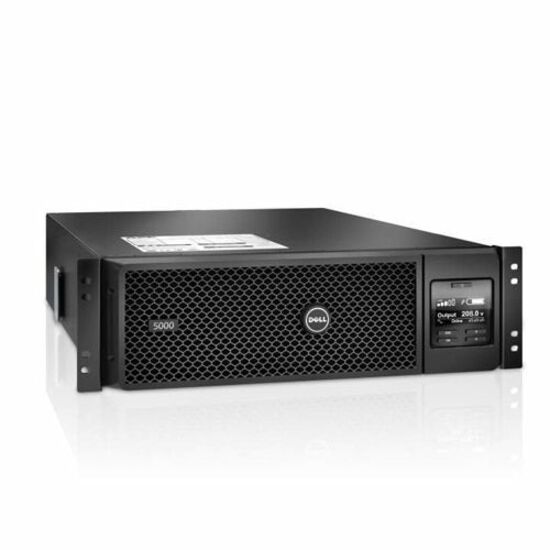

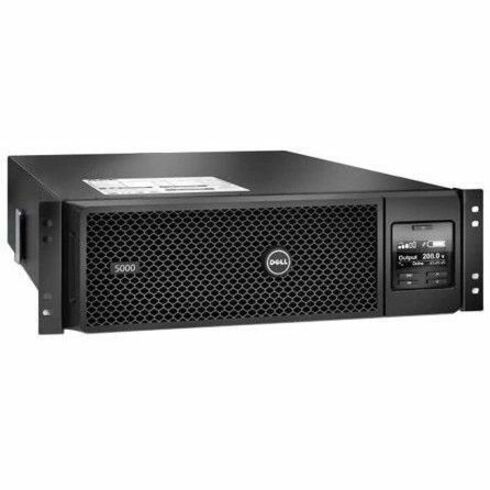

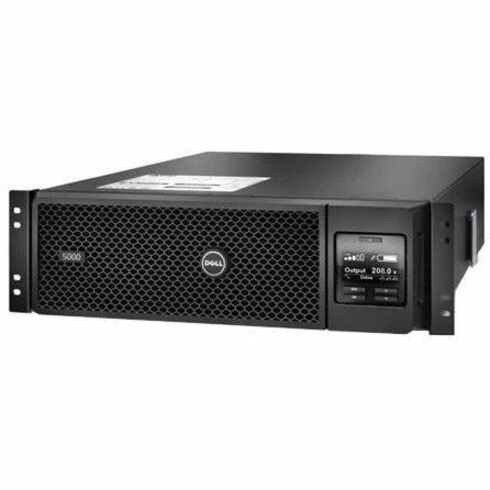

Dell Smart-UPS On-Line 5000VA Rack/Tower UPS
Dell Smart-UPS On-Line 5000VA Rack/Tower UPS - 3U Rack/Tower - 4.40 Minute Stand-by - 230 V AC, 120 V AC Input - 208 V AC, 240 V AC Output - Sine Wave - Serial Port - USB - LCD Display - 2 x NEMA L6-20R, 2 x NEMA L6-30R Receptacle(s) - 4 x Battery/Surge Outlet - SNMP/Telnet/HTTP/RS-232, SNMP/Modbus, SmartSlot
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
- Product Type
- Double Conversion Online UPS
- Receptacle Type
- NEMA L6-20R
- Receptacle Type
- NEMA L6-30R
- Network (RJ-45)
- Yes
- Product Family
- Smart-UPS On-Line
- Backup/Run Time (Half Load)
- 12.60 Minute
- Backup/Run Time (Full Load)
- 4.40 Minute
- Load Capacity (VA)
- 5000 kVA
Overview
Dell Smart-UPS On-Line 5000VA Rack/Tower UPS - 3U Rack/Tower - 4.40 Minute Stand-by - 230 V AC, 120 V AC Input - 208 V AC, 240 V AC Output - Sine Wave - Serial Port - USB - LCD Display - 2 x NEMA L6-20R, 2 x NEMA L6-30R Receptacle(s) - 4 x Battery/Surge Outlet - SNMP/Telnet/HTTP/RS-232, SNMP/Modbus, SmartSlot (part number A8572199) is supplied by Uniqcli, an authorized Dell Technologies partner, in the Dell General Purpose UPS category. Input Frequency: 40 Hz Hz, 70 Hz Hz.
The Dell Smart-UPS Online DLRT5KRMXLT provides instant battery power to your critical electronic devices, keeping you and your business productive even during power outages. It delivers high-density, true double-conversion online power protection for servers, voice/data networks, medical labs, and light industrial applications. All 4 outlets provide battery backup power and safeguard your expensive electronics from potentially harmful power conditions such as spikes and surges. Provides instant, clean power to your critical electronic devices during a power outage Four battery and surge protected outlets ensure all of your critical electronics will be backed-up and protected Two switched outlet groups allow you to reboot hung equipment, automatically shed less critical equipment, and sequence both the startup and shutdown of attached equipment The pure sine wave output while online or on battery provides the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics Green Mode bypasses unused electrical components to achieve high operating efficiency without sacrificing power protection Intuitive LCD panel provides Smart-UPS and power status at a glance
• Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments • Keep your sensitive devices powered with a backup of up to 4.40 minute at full load • 4800 W load capacity - backup power for your valuable electronics • 5000 kVA load capacity - work without any interruption during power outages • Lead Acid battery chemistry delivers energy to the electronic device through an easily controlled reaction
Key specifications: Input Frequency: 40 Hz Hz, 70 Hz Hz · Output Frequency: 50 Hz Hz, 60 Hz Hz · Input Voltage Range: 100 V AC - 275 V AC · Waveform Type: Sine Wave · Input Voltage: 230 V AC, 120 V AC · Output Voltage: 208 V AC, 240 V AC · Load Capacity (VA): 5000 kVA W · Load Capacity (Watt): 4800 W W.
GPC-payable and available on GSA and government contract vehicles. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Power Description
- Input Frequency
- 40 Hz Hz, 70 Hz Hz
- Output Frequency
- 50 Hz Hz, 60 Hz Hz
- Input Voltage Range
- 100 V AC - 275 V AC
- Waveform Type
- Sine Wave
- Input Voltage
- 230 V AC, 120 V AC
- Output Voltage
- 208 V AC, 240 V AC
- Load Capacity (VA)
- 5000 kVA W
- Load Capacity (Watt)
- 4800 W W
Management
- Network Management
- SNMP/Telnet/HTTP/RS-232, SNMP/Modbus, SmartSlot
Display & Graphics
- Display
- LCD
Miscellaneous
- Package Contents
- Smart-UPS On-Line 5000VA Rack/Tower UPS Tower Stand Rack Mounting Kit
- Software Included
- APC PowerChute
- Energy Star
- Yes
Warranty
- Limited Warranty
- 3 Year Year
Interfaces/Ports
- USB
- Yes
- Network (RJ-45)
- Yes
- Serial Port
- Yes
- EPO Port
- Yes
Physical Characteristics
- Height
- 5.12" mm
- Width
- 17.01" mm
- Depth
- 28.31" mm
- Rack Height
- 3U
- Form Factor
- Rack/Tower
- Weight (Approximate)
- 120.15 lb g
Technical Information
- Plug/Connector Type
- NEMA L6-30P
- Features
- Audible Alarm, Battery Management System (BMS)
- Surge Suppression
- Yes
- Application/Usage
- Electronic Device, Business, Server, Voice/Data Network, Medical Laboratory, Light Industrial Application, Mission Critical Equipment, Electronic Equipment
- Receptacle Type
- NEMA L6-20R, NEMA L6-30R
- Number of Battery & Surge Outlets
- 4
- Receptacle Detail
- 2 x NEMA L6-20R, 2 x NEMA L6-30R
Battery Information
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Half Load)
- 12.60 Minute Second
- Backup/Run Time (Full Load)
- 4.40 Minute Second
- Battery Characteristics
- Maintenance-free, Sealed, Leak-proof
General Information
- Product Type
- Double Conversion Online UPS
