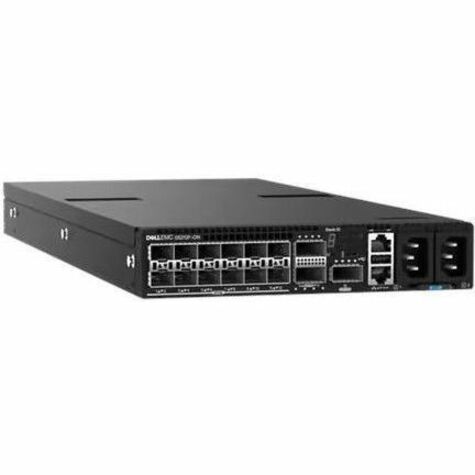

Dell PowerSwitch S5212F-ON Ethernet Switch

Dell PowerSwitch S5212F-ON Ethernet Switch - Manageable - 25 Gigabit Ethernet, 100 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet - 25GBase-X, 100GBase-X, 40GBase-X, 50GBase-X - 2 Layer Supported - 304 W Power Consumption - Optical Fiber - 1U - Rack-mountable - 1 Year Limited Warranty - TAA Compliant (part number S5212F_1.8) is supplied by Uniqcli, an authorized Dell Technologies partner, in the Dell Switches & Bridges category. Manageable: Yes.

High-performance, open networking 25GbE top-of-rack and 100GbE spine/leaf switches The PowerSwitch S5200-ON 25/100GbE fixed switches comprise Dell EMC's latest disaggregated hardware and software data center networking solutions, providing state-of-the-art, high-density 25/100GbE ports and a broad range of functionality to meet the growing demands of today's data center environment. These innovative, next-generation open networking switches offer optimum flexibility and cost-effectiveness for web 2.0, enterprise, mid- market and cloud service provider with demanding compute and storage traffic environments. The S5200-ON is a complete family of switches: 12-port, 24-port, and 48-port 25GbE/100GbE ToR switches, 96-port 25GbE/100GbE Middle of Row (MoR)/End of Row (EoR) switch, and a 32-port 100GbE Multi-Rate Spine/Leaf switch. From the compact half-rack width S5212F-ON providing an ideal form factor for hyper-converged deployments, to the high density S5296F-ON for Middle of Row deployments, the S5200-ON series offers performance and flexibility for a variety of network designs. In addition to 100GbE Spine/Leaf deployments, the S5232F-ON can also be used in high density deployments using breakout cables to achieve up to 128 10GbE or 128 25GbE ports. Using industry-leading hardware and a choice of Dell EMC's OS10 or select 3rd party network operating systems and tools, the S5200-ON switches incorporate multiple architectural features that optimize data center network flexibility, efficiency and availability, including IO panel to PSU or PSU to IO panel airflow for hot/cold aisle environments, redundant, hot-swappable power supplies and fans and deliver non-blocking performance for workloads sensitive to packet loss. Priority-based flow control (PFC), data center bridge exchange (DCBX) and enhanced transmission selection (ETS) make the S5200-ON family ideally suited for DCB environments. Dell EMC PowerSwitch S5200-ON switches support the open source Open Network Install Environment (ONIE) for zero touch installation of Dell EMC's OS10 networking operating system, as well as alternative network operating systems.

• 1 or 2RU high-density ToR switches with up to 48 or 96 ports of 25GbE or 32 ports of 100GbE • Multi-rate 100GbE ports support 10/25/40/50/100GbE • Scalable L2 and L3 Ethernet switching with QoS and a full complement of standards-based IPv4 and IPv6 features, including OSPF and BGP routing support • Line-rate performance via non-blocking switch fabrics: 3.2Tbps (6.4Tbps full-duplex) on S5296F-ON and S5232F-ON, 2.0Tbps (4.0Tbps full-duplex) on S5248F-ON, and 1.08Tbps (2.16Tbps full-duplex) on S5224F-ON and S5212F-ON • L2 multipath support via Virtual Link Trunking (VLT) and Routed VLT support

Key specifications: Manageable: Yes · Maximum Data Transfer Rate: 12.50 GB/s Bps · Ethernet Technology: 25 Gigabit Ethernet, 100 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet · Media Type Supported: Optical Fiber · Network Technology: 25GBase-X, 100GBase-X, 40GBase-X, 50GBase-X · Networking Standards: IEEE 802.1Qbb, IEEE 802.1Qaz · Layer Supported: 2 · Limited Warranty: 1 Year Year.

GPC-payable and available on GSA and government contract vehicles. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
