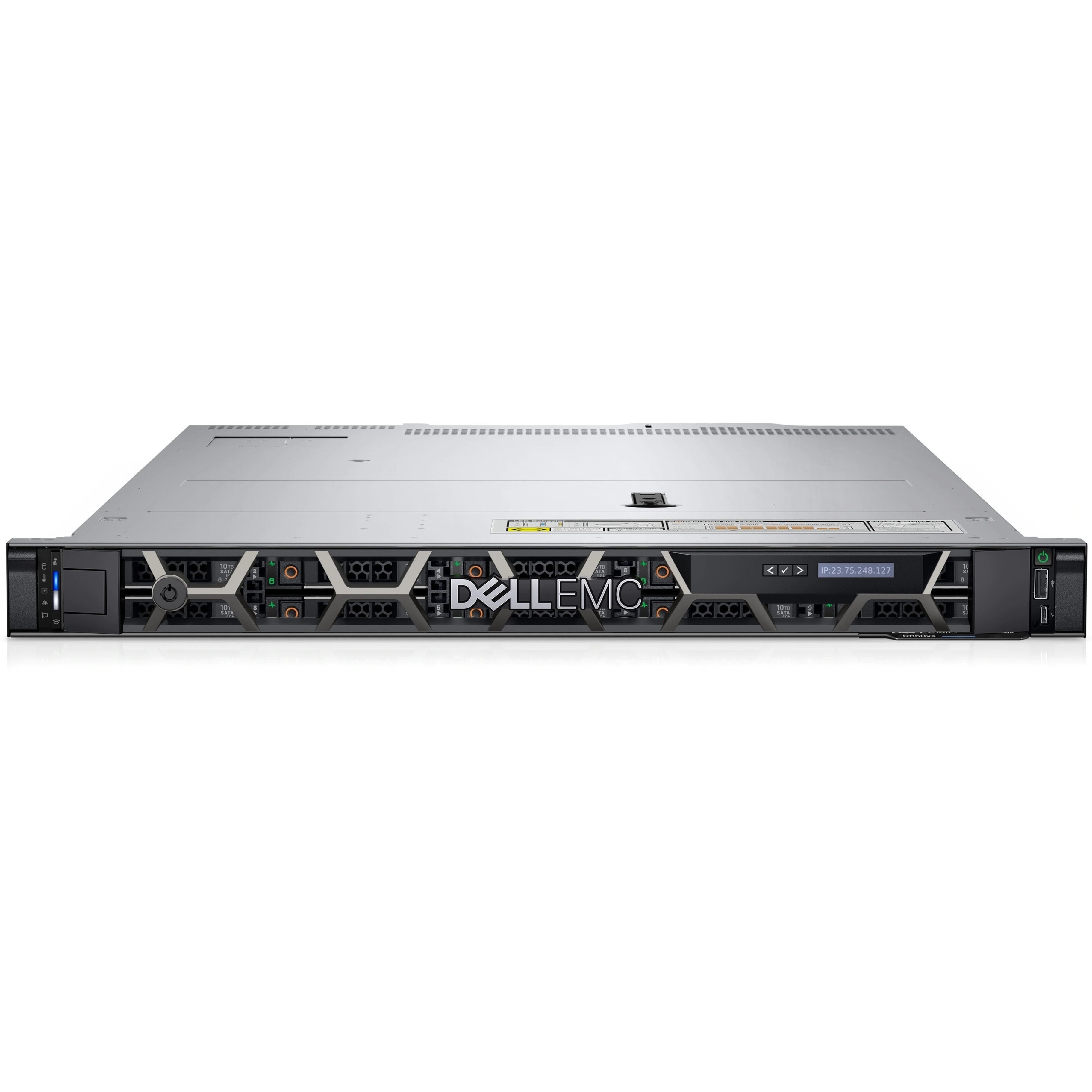

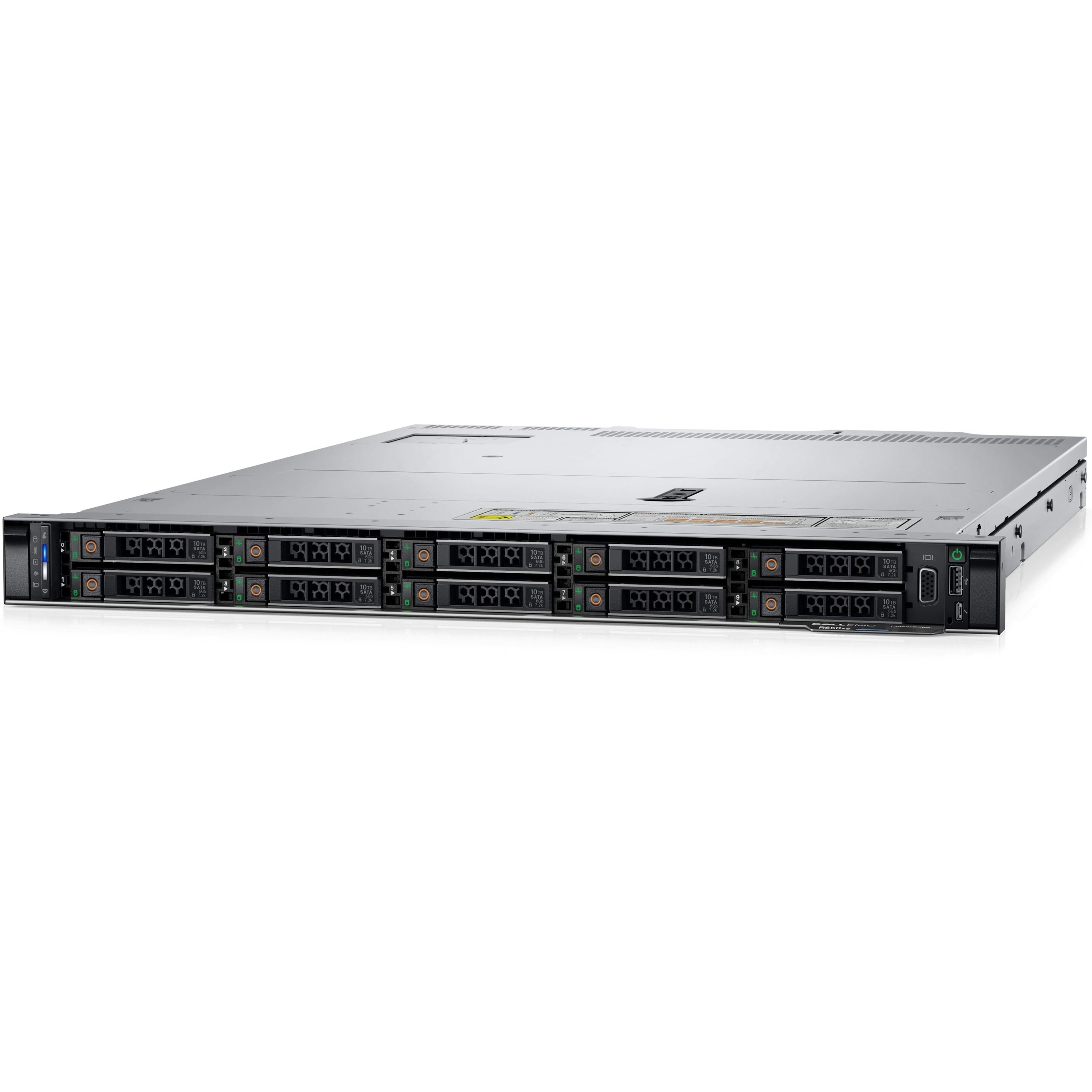

Representative imageDell PowerEdge R650xs 1U Rack-mountable Server
Dell PowerEdge R650xs 1U Rack-mountable Server - 1 Xeon Silver 4310 2.10 GHz - 32 GB RAM - 480 GB SSD - (1 x 480GB) SSD Configuration - Serial ATA/600, 12Gb/s SAS Controller - Intel Chip - 2 Processor Support - 1 TB RAM Support - Gigabit Ethernet - 8 x Total Bay(s) - 8 x SFF Bay(s) - Hot Swappable Bays - 2 x 800 W - Redundant Power Supply
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
- Product Type
- Server
- Processor Core
- Dodeca-core (12 Core)
- Redundant Power Supply
- Yes
- Optical Drive Type
- No
- Number of Processors Supported
- 2
- Number of Processors Installed
- 1
- RAID Supported
- Yes
- Ethernet Technology
- Gigabit Ethernet
Overview
Dell PowerEdge R650xs 1U Rack-mountable Server - 1 Xeon Silver 4310 2.10 GHz - 32 GB RAM - 480 GB SSD - (1 x 480GB) SSD Configuration - Serial ATA/600, 12Gb/s SAS Controller - Intel Chip - 2 Processor Support - 1 TB RAM Support - Gigabit Ethernet - 8 x Total Bay(s) - 8 x SFF Bay(s) - Hot Swappable Bays - 2 x 800 W - Redundant Power Supply (part number 65W97) is supplied by Uniqcli, an authorized Dell Technologies partner, in the Dell Servers category. Cache: 18 MB Byte.
Purpose-built 1U server for dense, fast growing scale-out solutions The Dell EMC PowerEdge R650xs, with 3rd generation Intel® Xeon® Scalable processors, designed to meet a specific set of requirements for medium-duty workloads with enterprise-class performance and capabilities. Innovate at scale with challenging and emerging workloads The new Dell EMC PowerEdge R650xs is a 1U, dual-socket server that's purpose-built to maximize value with distinctive feature sets for scale-out environments. With it, you can: Add additional power and cores: Up to two 3rd generation Intel® Xeon® Scalable processors, up to 32 cores per socket Accelerate in-memory workloads: Up to 16 DDR4 RDIMMS, 3200 MT/sec Improve throughput, reduce latency: With up to 3 PCIe Gen4 slots, OCP 3.0 for network cards, and SNAP I/O support Include flexible storage: Up to 4x 3.5" SAS/SATA HDDs or SSDs; or up to 10x 2.5" SAS/SATA HDDs or SSDs, and 10 NVMe drives Enable virtualization, medium VM density or VDI, and software-defined storage node workloads Increase efficiency and accelerate operations with autonomous collaboration The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies' intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment. Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools for multiple operating environments, from on-premise to cloud to edge Built-in proactive resilience through a complete portfolio of solutions From the silicon and supply chain all the way to asset retirement, know that your servers are safe and secure with innovative Dell EMC and Intel technologies. We give you the confidence of cyber resilience with enterprise-class security that minimizes risk for any organization, from small business to hyperscale. Stay strong with continuous innovations that bolster cyber resilience, like OpenManage Secure Enterprise Key Manager and Automatic Certificate Enrollment Outmaneuver threats with intelligence, automation, and recovery tools that include iDRAC9 Telemetry, BIOS live scanning, and Rapid OS recovery Start strong with platform security features, even before the server is built, including Secured Component Verification and Silicon Root of Trust
• Virtualization/Cloud • Scale-out Database • High-Performance Compute
Key specifications: Cache: 18 MB Byte · Processor Core: Dodeca-core (12 Core) · Number of Processors Supported: 2 · Number of Processors Installed: 1 · Processor Generation: 3rd Gen · Processor Model: 4310 · Processor Speed: 2.10 GHz Hz · Processor Type: Xeon Silver.
GPC-payable and available on GSA and government contract vehicles. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Processor
- Cache
- 18 MB Byte
- Processor Core
- Dodeca-core (12 Core)
- Number of Processors Supported
- 2
- Number of Processors Installed
- 1
- Processor Generation
- 3rd Gen
- Processor Model
- 4310
- Processor Speed
- 2.10 GHz Hz
- Processor Type
- Xeon Silver
Warranty
- Additional Warranty Information
- 3 Years Basic Hardware Warranty Repair 5x10 HW-Only 5x10 Next Business Day Onsite-Disti SNS
- Limited Warranty
- 3 Year Year
Chipset
- Chipset Manufacturer
- Intel
I/O Expansions
- Number of Internal 2.5" Bays
- 8
- Number of Total Expansion Bays
- 8
- Total Number of Expansion Slots
- 3
- Hot Swappable Bays
- Yes
- Number of SFF Bays
- 8
- Riser Card
- 1 x OCP 3.0(x16)+ 1 x 16LP
Controllers
- RAID Supported
- Yes
- Controller Model
- PERC H755
- Controller Type
- Serial ATA/600, 12Gb/s SAS
Network & Communication
- Ethernet Technology
- Gigabit Ethernet
Memory
- Number of Occupied Memory Slots
- 2
- Memory Clock Speed
- 3.20 GHz Hz
- Total Number of Memory Slots
- 16
- Error Checking
- ECC
- Maximum Memory Supported
- 1 TB Byte
- Signal Processing
- Registered (Buffered)
- Standard Memory
- 32 GB Byte
Miscellaneous
- Country of Origin
- Mexico
- Security Features
- Cryptographically Signed Firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
- Package Contents
- PowerEdge R650xs Server 2 x NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America Ready Rails Sliding Rails Without Cable Management Arm
Physical Characteristics
- Height
- 1.7" mm
- Width
- 19" mm
- Depth
- 28.9" mm
- Rack Height
- 1U
- Form Factor
- Rack-mountable
Operating System
- Operating System
- No
- Operating System Supported
- Ubuntu Server, Windows Server, Red Hat Enterprise Linux, SuSE Linux Enterprise Server
Power Description
- Number of Power Supplies Installed
- 2
- Redundant Power Supply
- Yes
- Hot Swappable Power Supply
- Yes
- Maximum Power Supply Wattage
- 800 W W
- Plug/Connector Type
- NEMA 5-15P to C13
Interfaces/Ports
- VGA
- Yes
- Number of Network (RJ-45) Ports
- 2
- Network (RJ-45)
- Yes
- Remote Management
- Yes
- Number of USB 2.0 Ports
- 2
- Remote Management Controller
- iDRAC9 Datacenter 15G with OpenManage Enterprise Advanced
Storage
- Optical Drive Type
- No
- Solid State Drive Interface
- Serial ATA/600
- Total Solid State Drive Capacity
- 480 GB Byte
- Number of Solid State Drives
- 1
General Information
- Product Type
- Server
- Product Model
- R650xs
