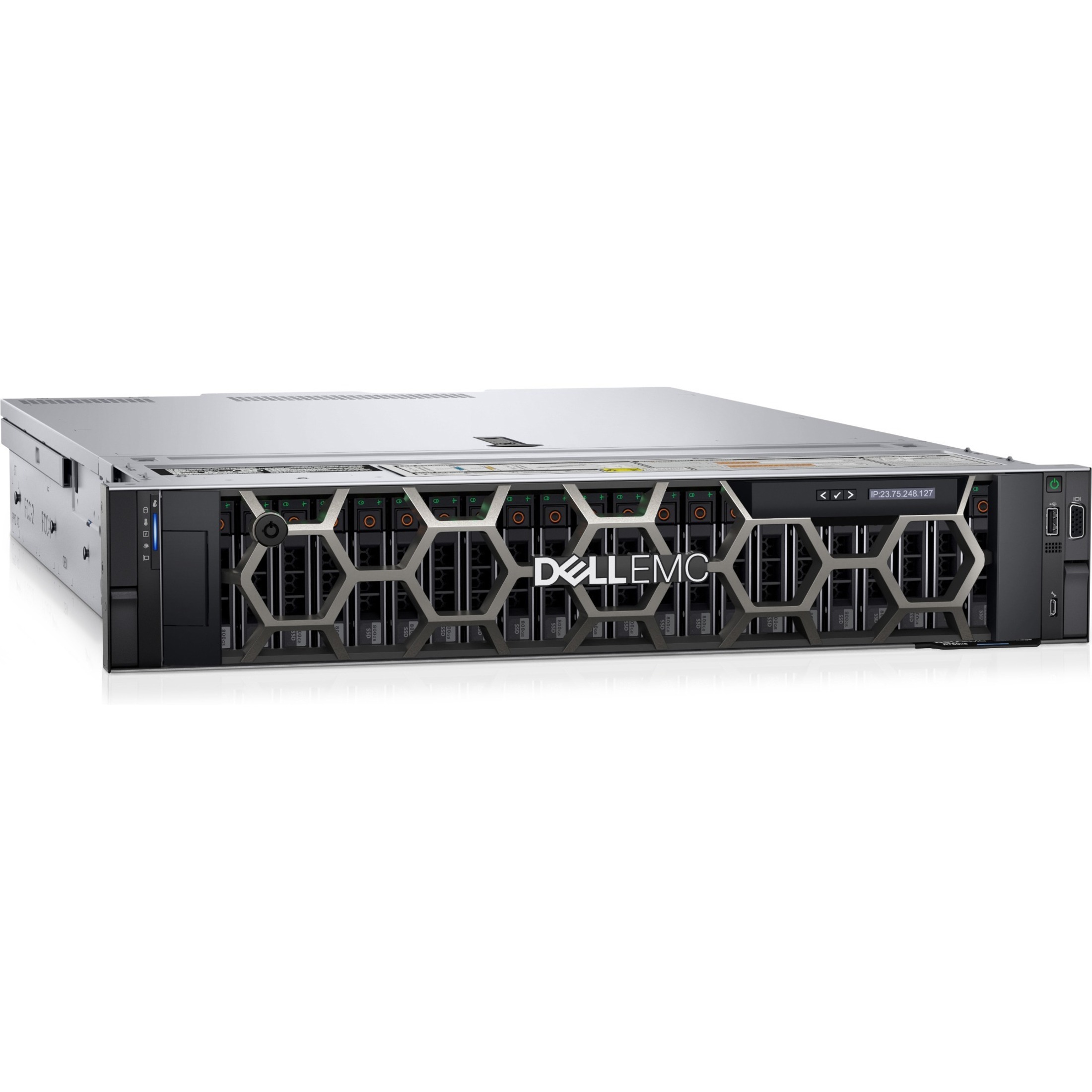

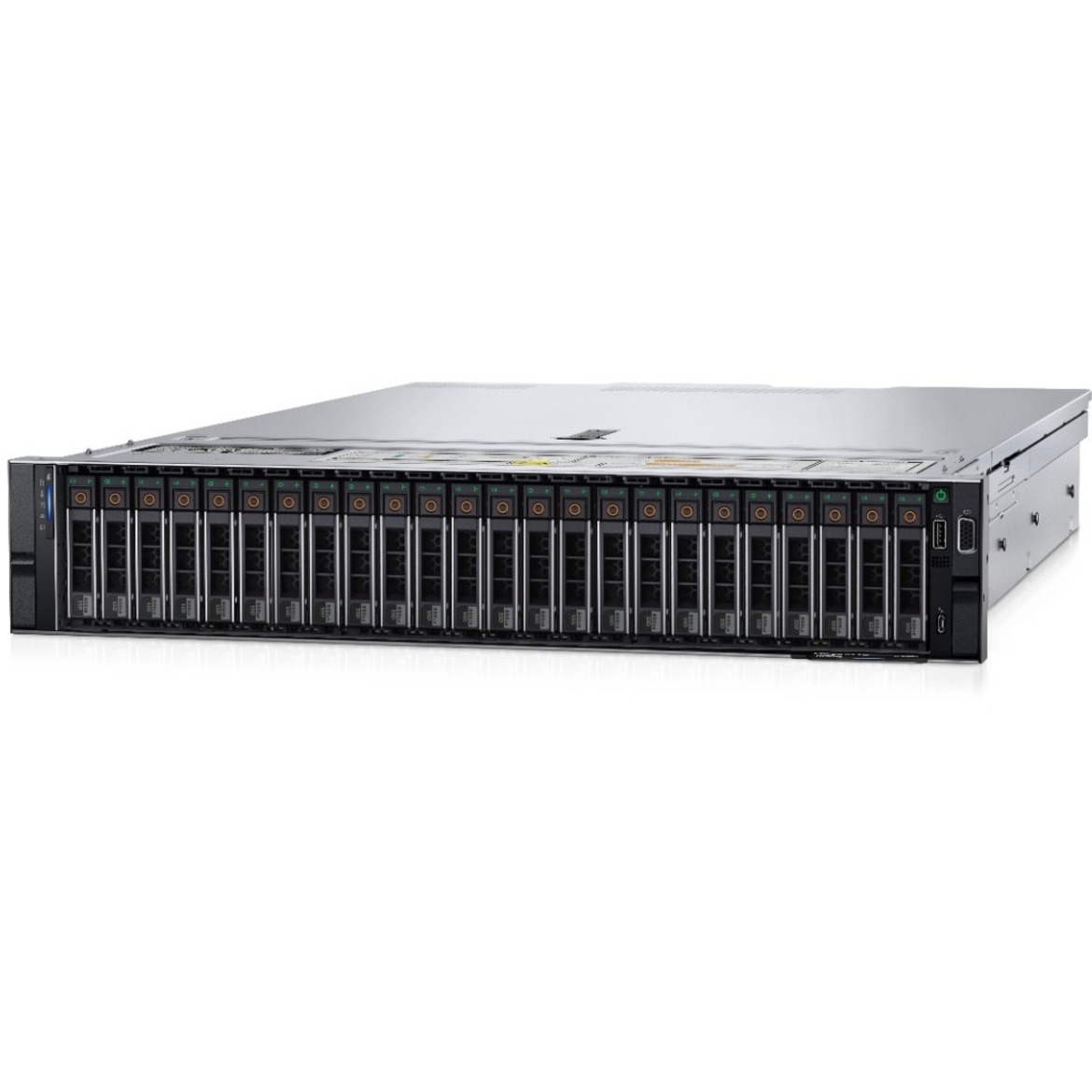

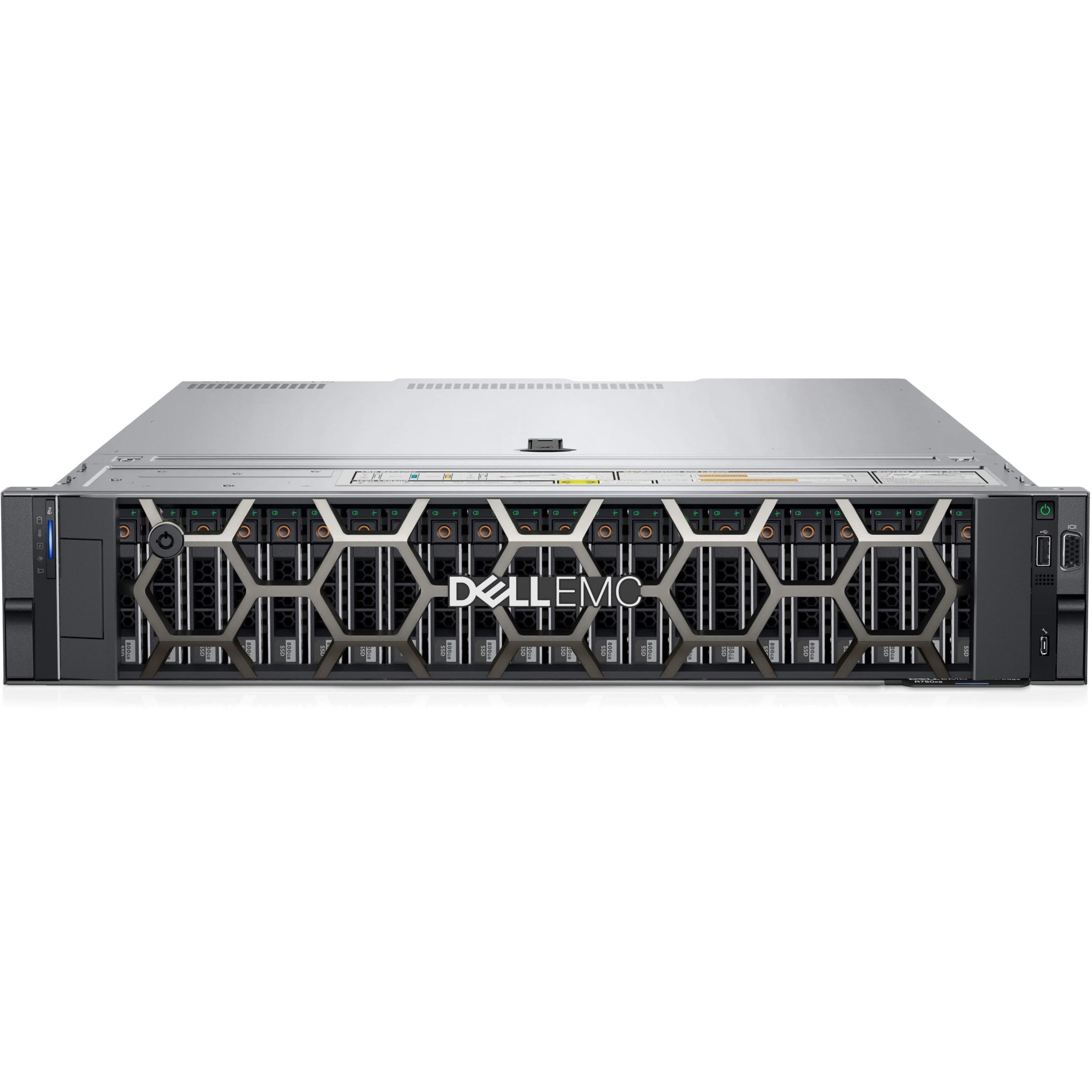

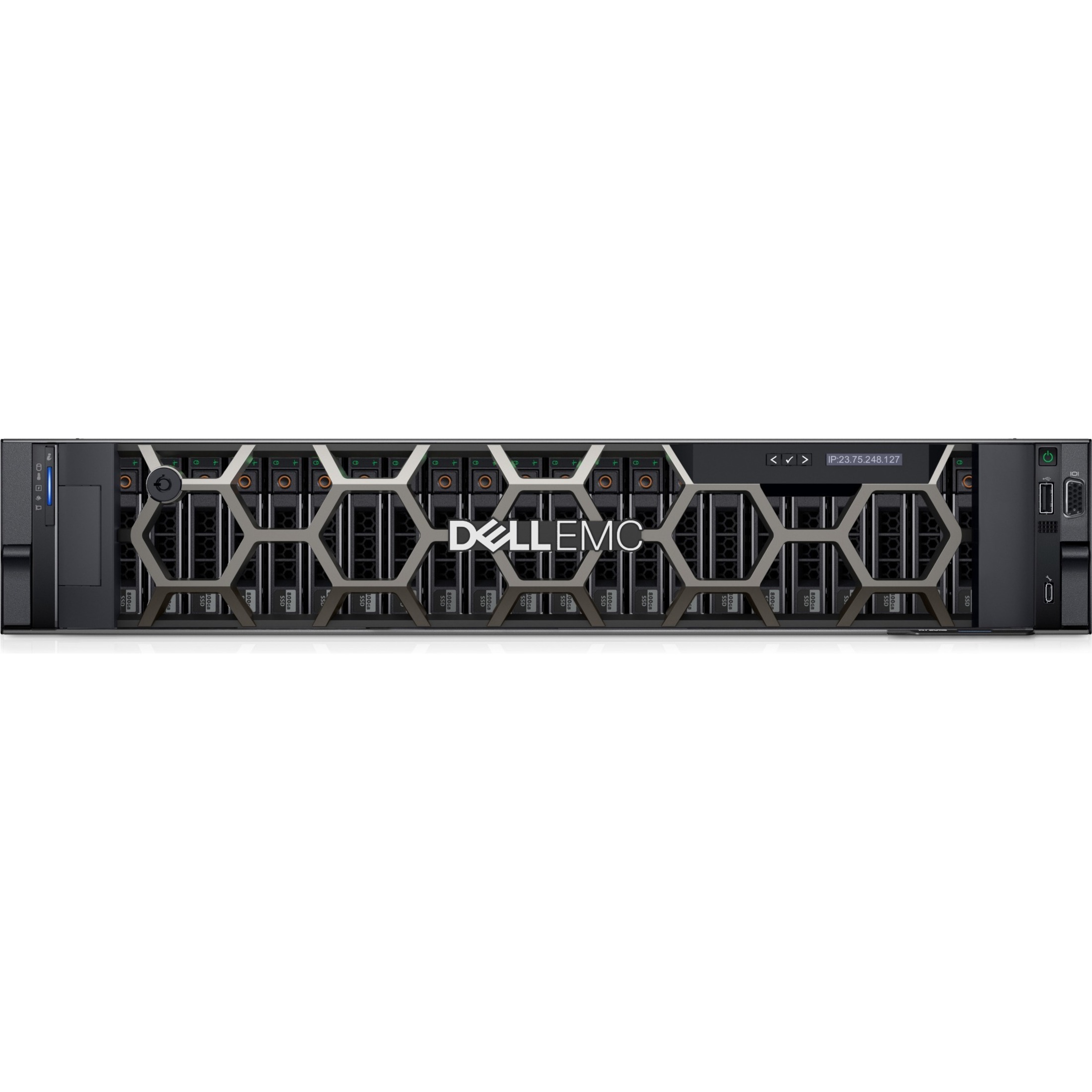

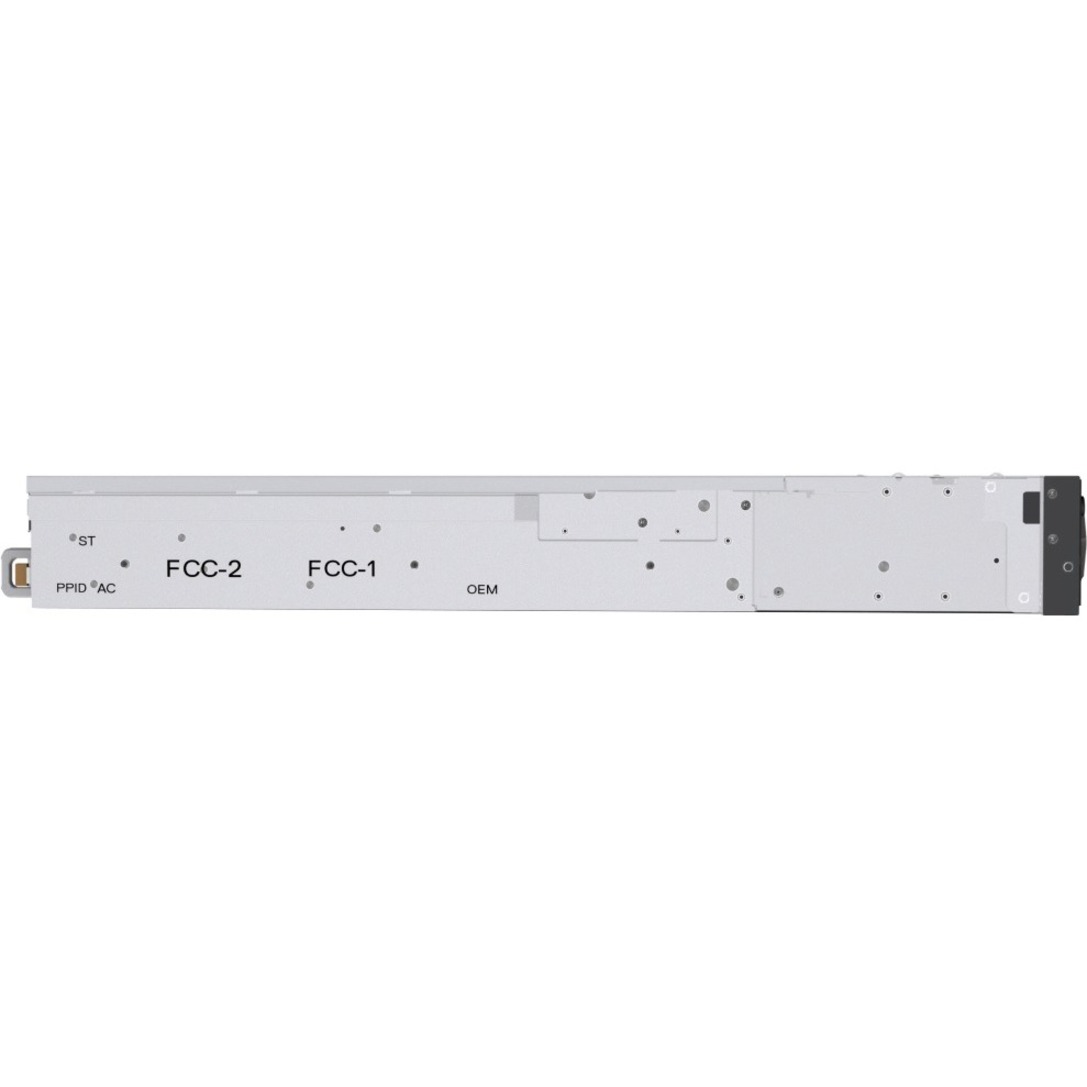

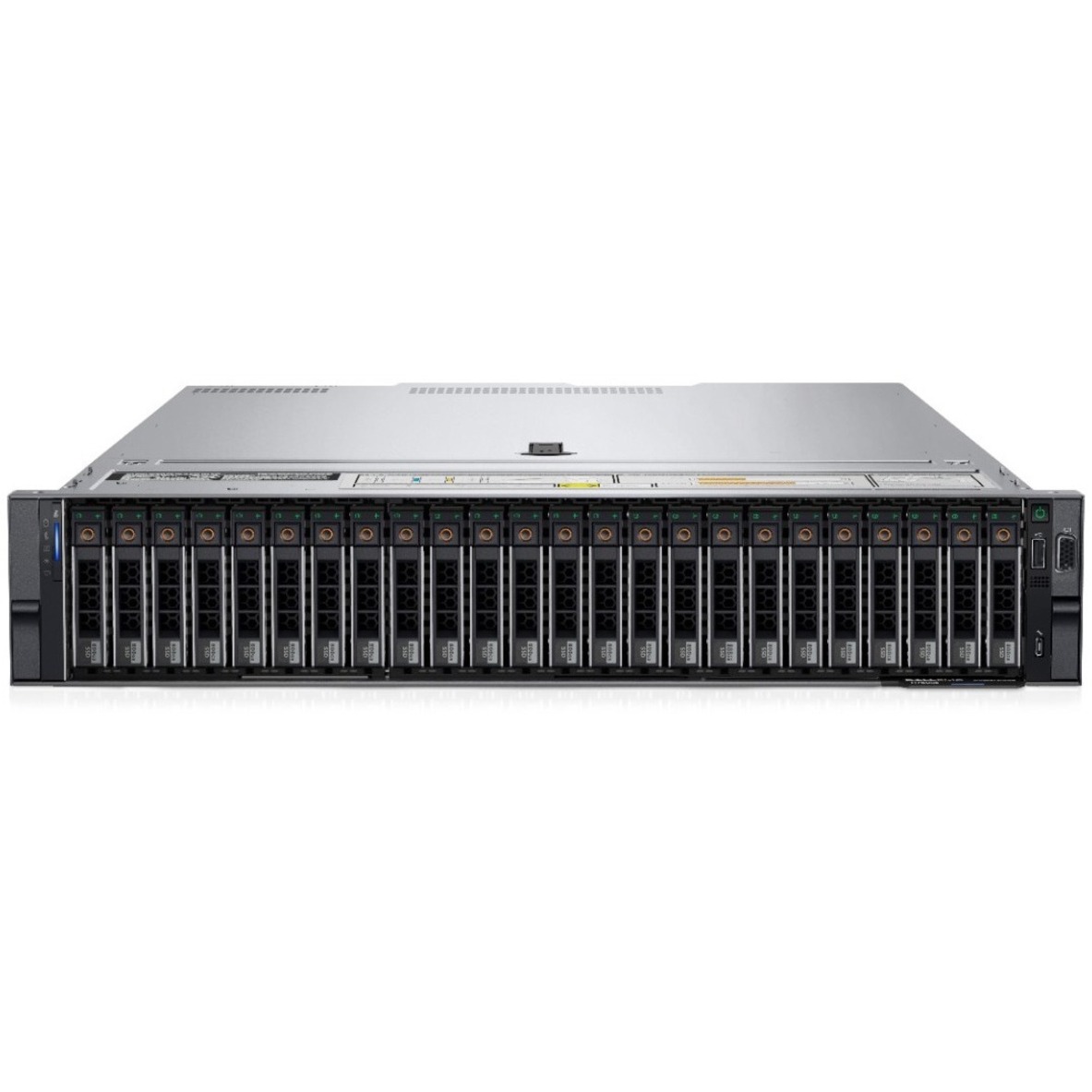

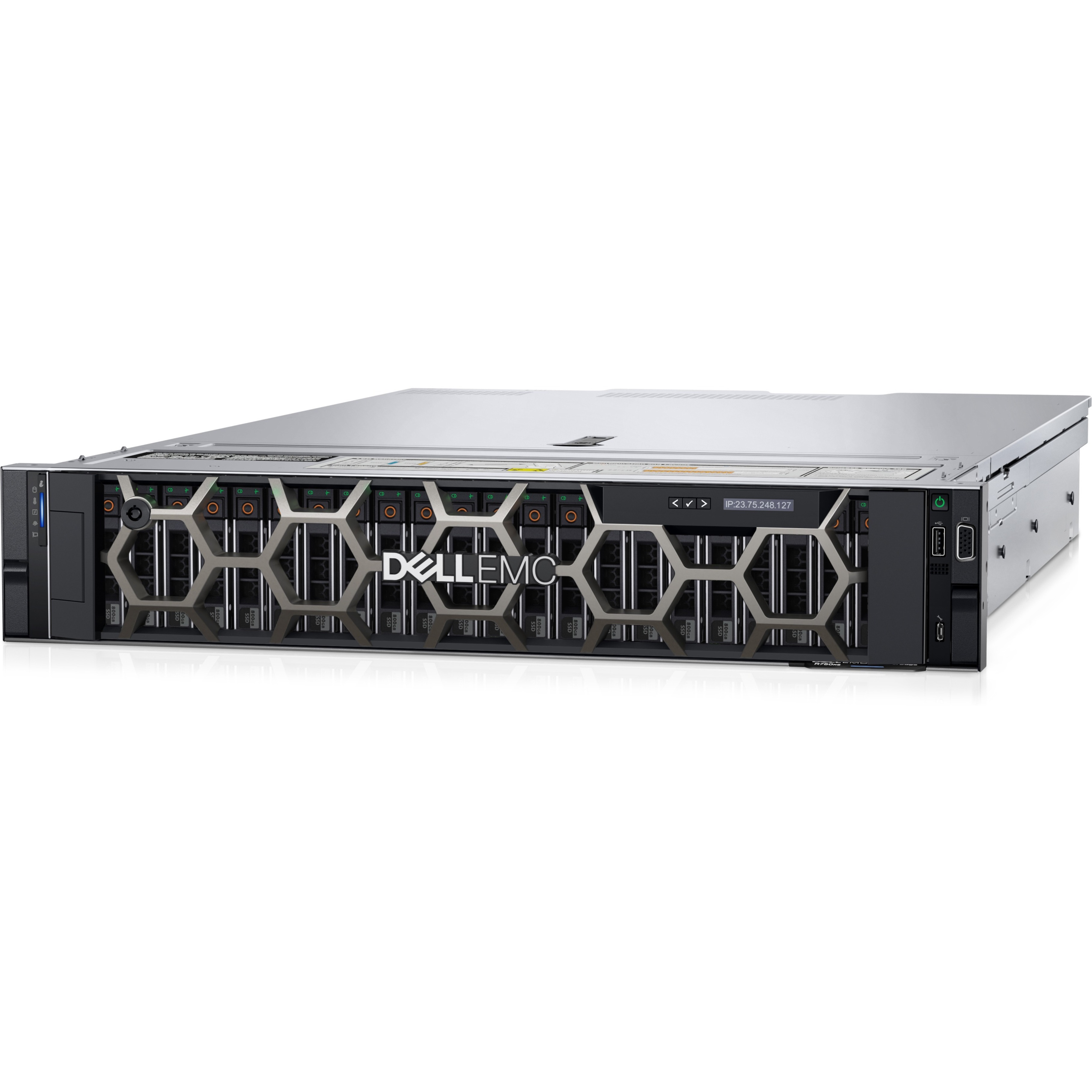

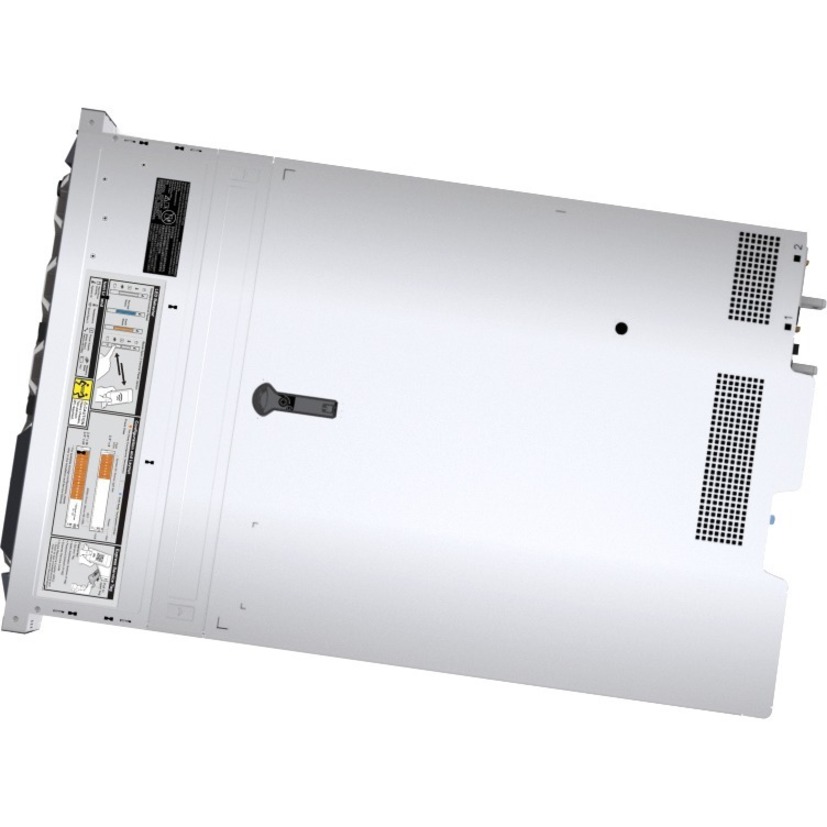

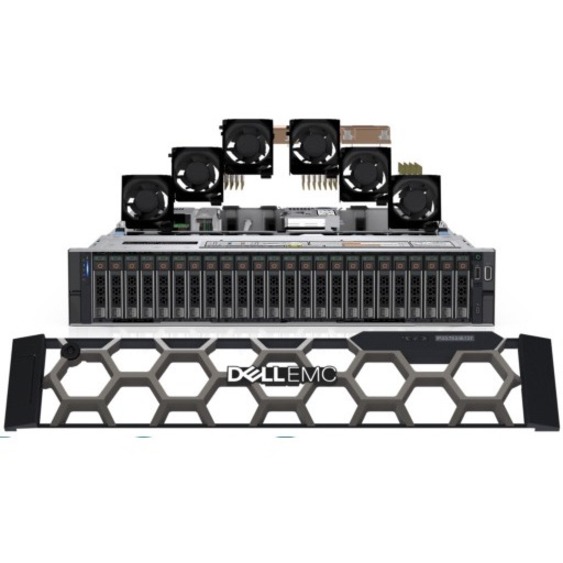

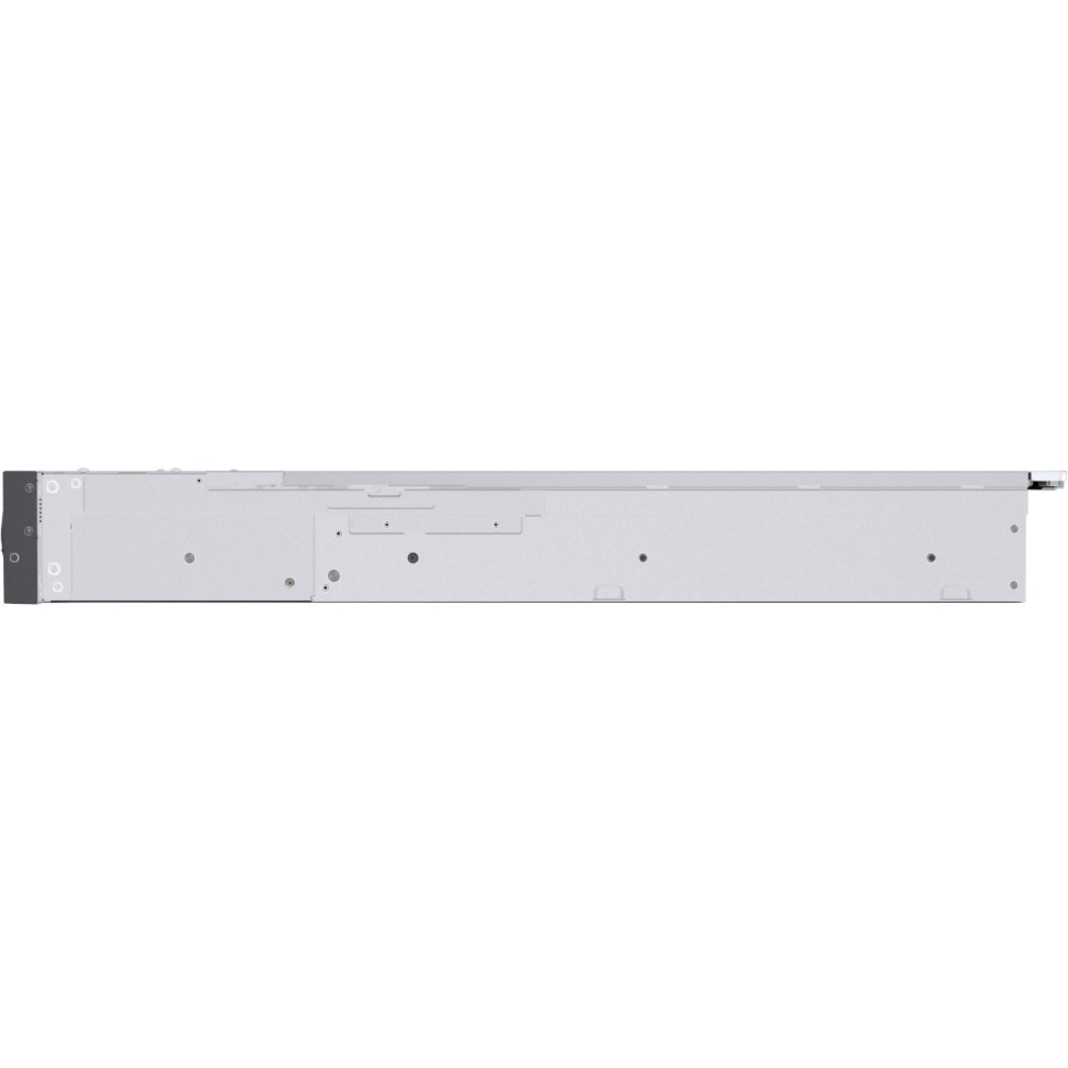

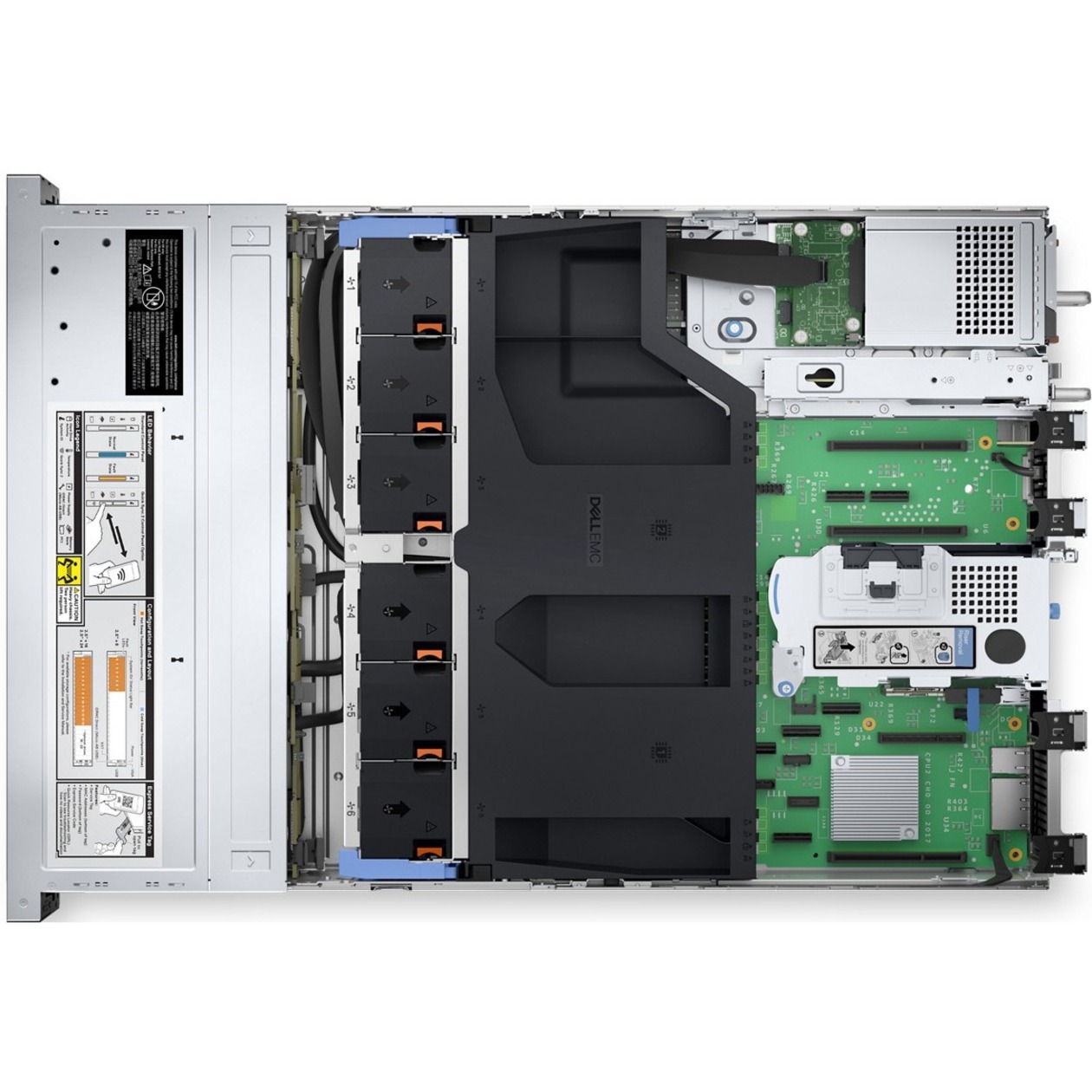

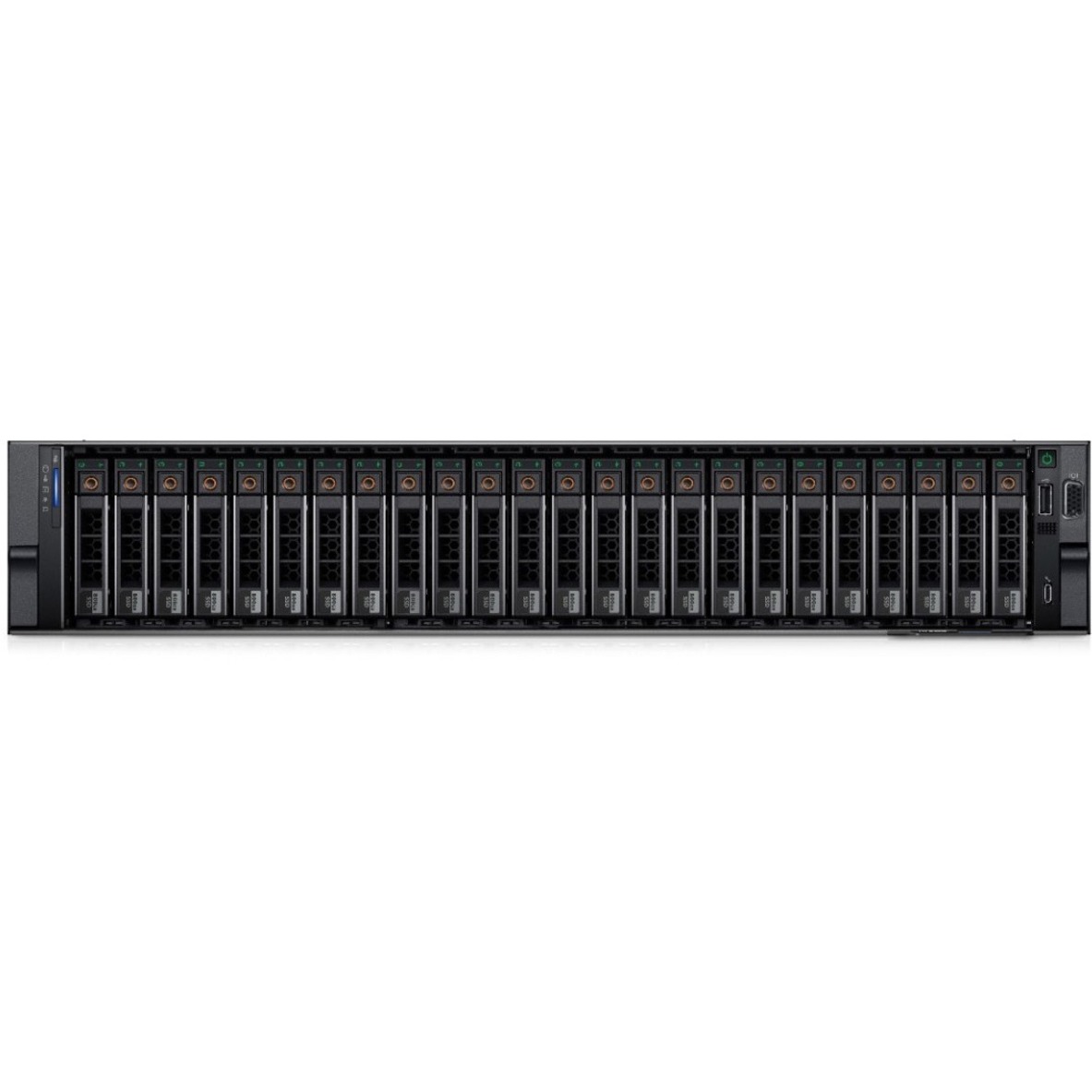

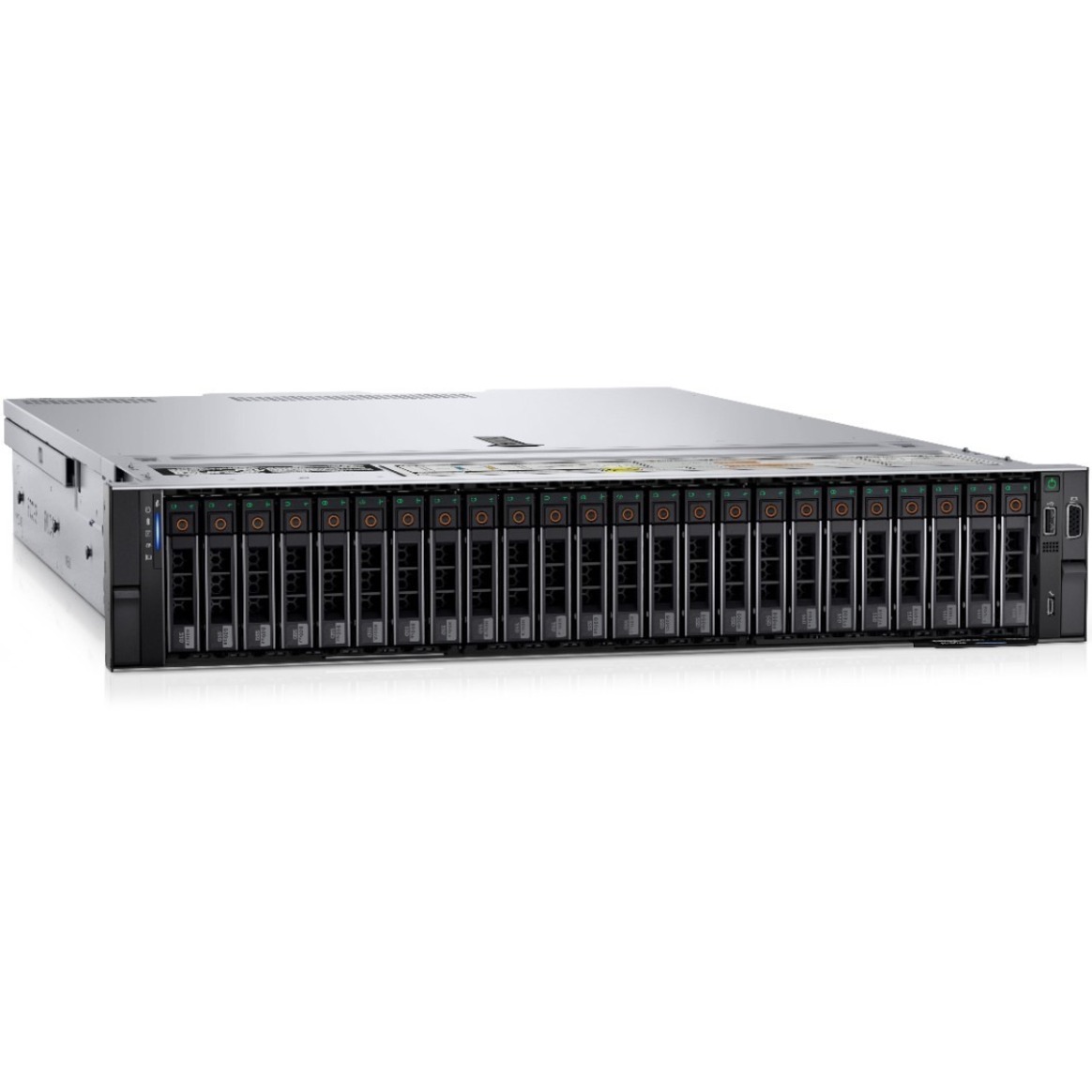

Representative imageDell PowerEdge R750xs 2U Rack-mountable Server
Dell PowerEdge R750xs 2U Rack-mountable Server - 2 Xeon Gold 5318Y 2.10 GHz - 32 GB RAM - 480 GB SSD - (1 x 480GB) SSD Configuration - Serial ATA/600, Serial Attached SCSI (SAS) Controller - Intel Chip - 2 Processor Support - 128 GB RAM Support - DDR4 SDRAM - Gigabit Ethernet - 16 x Total Bay(s) - 16 x SFF Bay(s) - Hot Swappable Bays - 2 x 1100 W - Redundant Power Supply
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
- Product Type
- Server
- Processor Core
- Tetracosa-core (24 Core)
- Redundant Power Supply
- Yes
- Optical Drive Type
- No
- Number of Processors Supported
- 2
- Number of Processors Installed
- 2
- RAID Supported
- Yes
- Ethernet Technology
- Gigabit Ethernet
Overview
Dell PowerEdge R750xs 2U Rack-mountable Server - 2 Xeon Gold 5318Y 2.10 GHz - 32 GB RAM - 480 GB SSD - (1 x 480GB) SSD Configuration - Serial ATA/600, Serial Attached SCSI (SAS) Controller - Intel Chip - 2 Processor Support - 128 GB RAM Support - DDR4 SDRAM - Gigabit Ethernet - 16 x Total Bay(s) - 16 x SFF Bay(s) - Hot Swappable Bays - 2 x 1100 W - Redundant Power Supply (part number PT8PF) is supplied by Uniqcli, an authorized Dell Technologies partner, in the Dell Servers category. Cache: 36 MB Byte.
Purpose-built 2U for growing scale-out solutions The Dell EMC PowerEdge R750xs, with 3rd generation Intel® Xeon® Scalable processors, is purposefully designed with distinctive, customer-defined requirements to deliver enterprise performance for scale-out environments. Innovate at scale with challenging and emerging workloads The new Dell EMC PowerEdge R750xs is a 2U, dual-socket, feature-optimized server with an ideal selection of CPU, I/O, and storage performance for scale-out environments. With it, you can: Add additional power and cores: Up to two 3rd generation Intel® Xeon® Scalable processors, up to 32 cores per socket Accelerate in-memory workloads: Up to 16 DDR4 RDIMMS, 3200 MT/sec Improve throughput, reduce latency: With up to 5 PCIe Gen4 slots, OCP 3.0 for network cards, and SNAP I/O support Include flexible storage: Up to 12x 3.5" SAS/SATA HDDs or SSDs; or up to 16x 2.5" SAS/SATA HDDs or SSDs, and 8 NVMe drives Enable virtualization, medium VM density or VDI, and software-defined storage node workloads Increase efficiency and accelerate operations with autonomous collaboration The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies' intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment. Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools for onpremise, edge and cloud environments Built-in proactive resilience through a complete portfolio of solutions From the silicon and supply chain all the way to asset retirement, know that your servers are safe and secure with innovative Dell EMC and Intel technologies. We give you the confidence of cyber resilience with enterprise class security that minimizes risk for any organization, from small business to hyperscale. Start strong with platform security features, even before the server is built, including Secured Component Verification and Silicon Root of Trust Stay strong with continuous innovations that bolster cyber resilience, like OpenManage Secure Enterprise Key Manager and Automatic Certificate Enrollment Outmaneuver threats with intelligence, automation, and recovery tools that include iDRAC9 Telemetry, BIOS live scanning, and Rapid OS recovery
• Virtualization • Medium VM density or VDI • Software-defined storage node
Key specifications: Cache: 36 MB Byte · Processor Speed: 2.10 GHz Hz · Processor Type: Xeon Gold · Processor Core: Tetracosa-core (24 Core) · Number of Processors Supported: 2 · Number of Processors Installed: 2 · Processor Generation: 3rd Gen · Processor Model: 5318Y.
GPC-payable and available on GSA and government contract vehicles. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Processor
- Cache
- 36 MB Byte
- Processor Speed
- 2.10 GHz Hz
- Processor Type
- Xeon Gold
- Processor Core
- Tetracosa-core (24 Core)
- Number of Processors Supported
- 2
- Number of Processors Installed
- 2
- Processor Generation
- 3rd Gen
- Processor Model
- 5318Y
Warranty
- Additional Warranty Information
- 3 Years Basic Hardware Warranty Repair 5x10 HW-Only 5x10 Next Business Day Onsite-Disti SNS
- Limited Warranty
- 3 Year Year
Operating System
- Operating System
- No
- Operating System Supported
- Ubuntu Server, Windows Server, Citrix XenServer, Red Hat Enterprise Linux, SuSE Linux Enterprise Server
Physical Characteristics
- Form Factor
- Rack-mountable
- Height
- 3.4" mm
- Width
- 19" mm
- Depth
- 27.9" mm
- Rack Height
- 2U
Miscellaneous
- Security Features
- Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
- Package Contents
- PowerEdge R750xs Server 2 x NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America ReadyRails Sliding Rails Without Cable Management Arm
- Country of Origin
- Mexico
Controllers
- Controller Type
- Serial ATA/600, Serial Attached SCSI (SAS)
- RAID Supported
- Yes
- Controller Model
- PERC H755
Memory
- Error Checking
- ECC
- Maximum Memory Supported
- 128 GB Byte
- Signal Processing
- Registered (Buffered)
- Standard Memory
- 32 GB Byte
- Number of Occupied Memory Slots
- 2
- Memory Clock Speed
- 3.20 GHz Hz
- Total Number of Memory Slots
- 16
- Memory Technology
- DDR4 SDRAM
Power Description
- Input Voltage
- 120 V AC V AC, 230 V AC V AC
- Number of Power Supplies Installed
- 2
- Redundant Power Supply
- Yes
- Hot Swappable Power Supply
- Yes
- Maximum Power Supply Wattage
- 1100 W W
- Plug/Connector Type
- NEMA 5-15P to C13
I/O Expansions
- Riser Card
- Riser Config 1, Half Length, Low Profile, 4x16 + 1x8 + 1x4 slots w/SNAPI on 1 slot
- Number of Internal 2.5" Bays
- 16
- Number of Total Expansion Bays
- 16
- Total Number of Expansion Slots
- 6
- Hot Swappable Bays
- Yes
- Number of SFF Bays
- 16
Chipset
- Chipset Manufacturer
- Intel
Network & Communication
- Ethernet Technology
- Gigabit Ethernet
Interfaces/Ports
- VGA
- Yes
- Number of Network (RJ-45) Ports
- 2
- Network (RJ-45)
- Yes
- Remote Management
- Yes
- Number of USB 2.0 Ports
- 2
- Remote Management Controller
- iDRAC9 Datacenter 15G with OpenManage Enterprise Advanced
Storage
- Optical Drive Type
- No
- Solid State Drive Interface
- Serial ATA/600
- Total Solid State Drive Capacity
- 480 GB Byte
- Number of Solid State Drives
- 1
General Information
- Product Type
- Server
- Product Model
- R750xs
